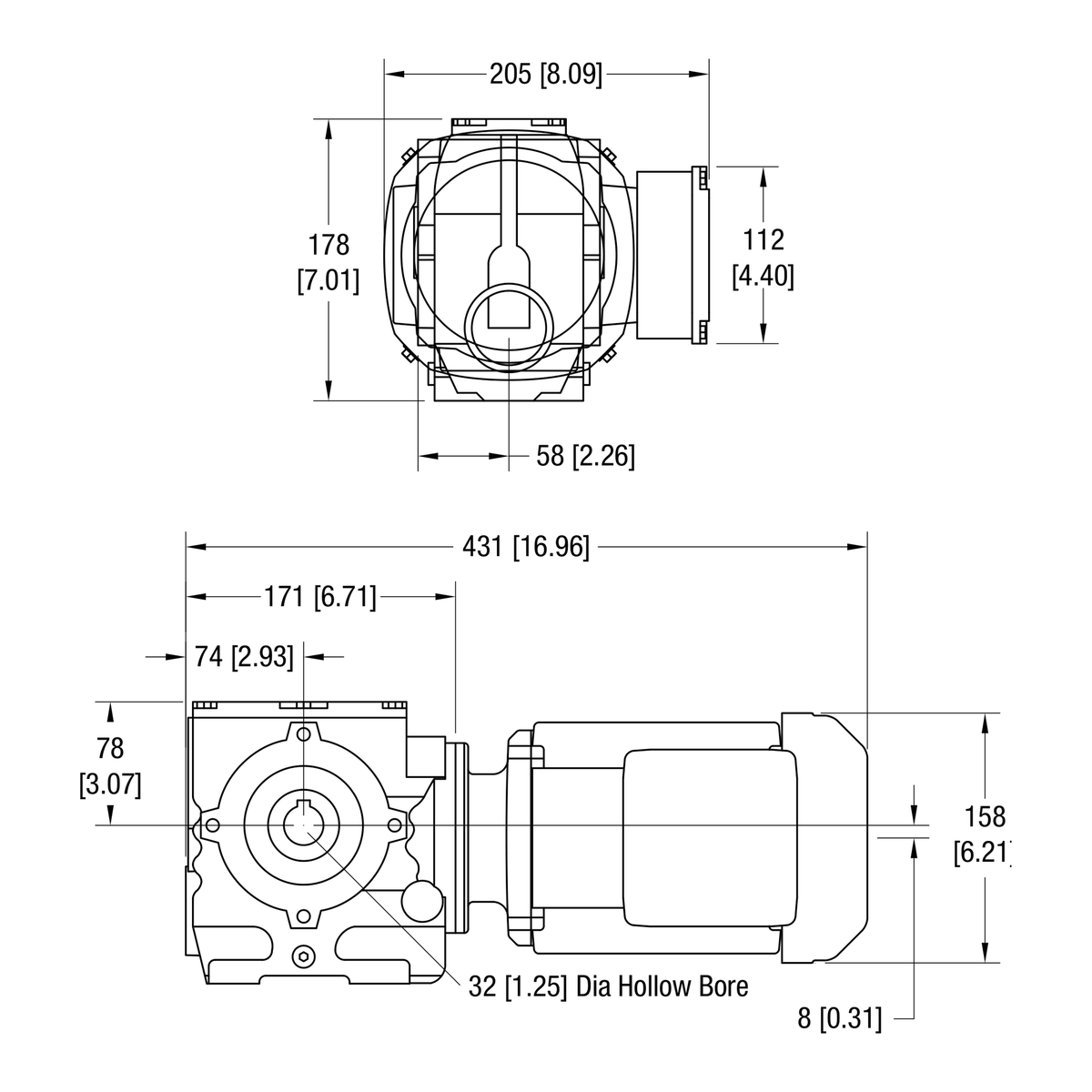

Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M044WH423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 0.75 Hp, 38 RPM

SKU: 32M044WH423EN
Estimated ship time:35 Business Days
Call Us for Volume Discount Availability 704.519.4661
$2,207.00

Heavy load SEW gearmotor 0.75 Hp (.56 kW), 230/460 volt, 3 phase, 10-60 Hz, 38 RPM. Order 3 phase starter or VFD controller separately. Uncrated weight = 45 lbs. (20.4 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 38
  • Output Torque (in-lb) 973
  • Output Torque (Nm) 109.9
  • Motor Power (Hp) 0.75 Hp
  • Motor Power (kW) 0.56
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible, constant torque 10-60 Hz)
  • Full Load Amps 2.50 / 1.25 A
  • Motor Mount SEW SA47
  • Weight 45 lb
