Home » Dorner 32M016WH423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 1.5 Hp, 106 RPM

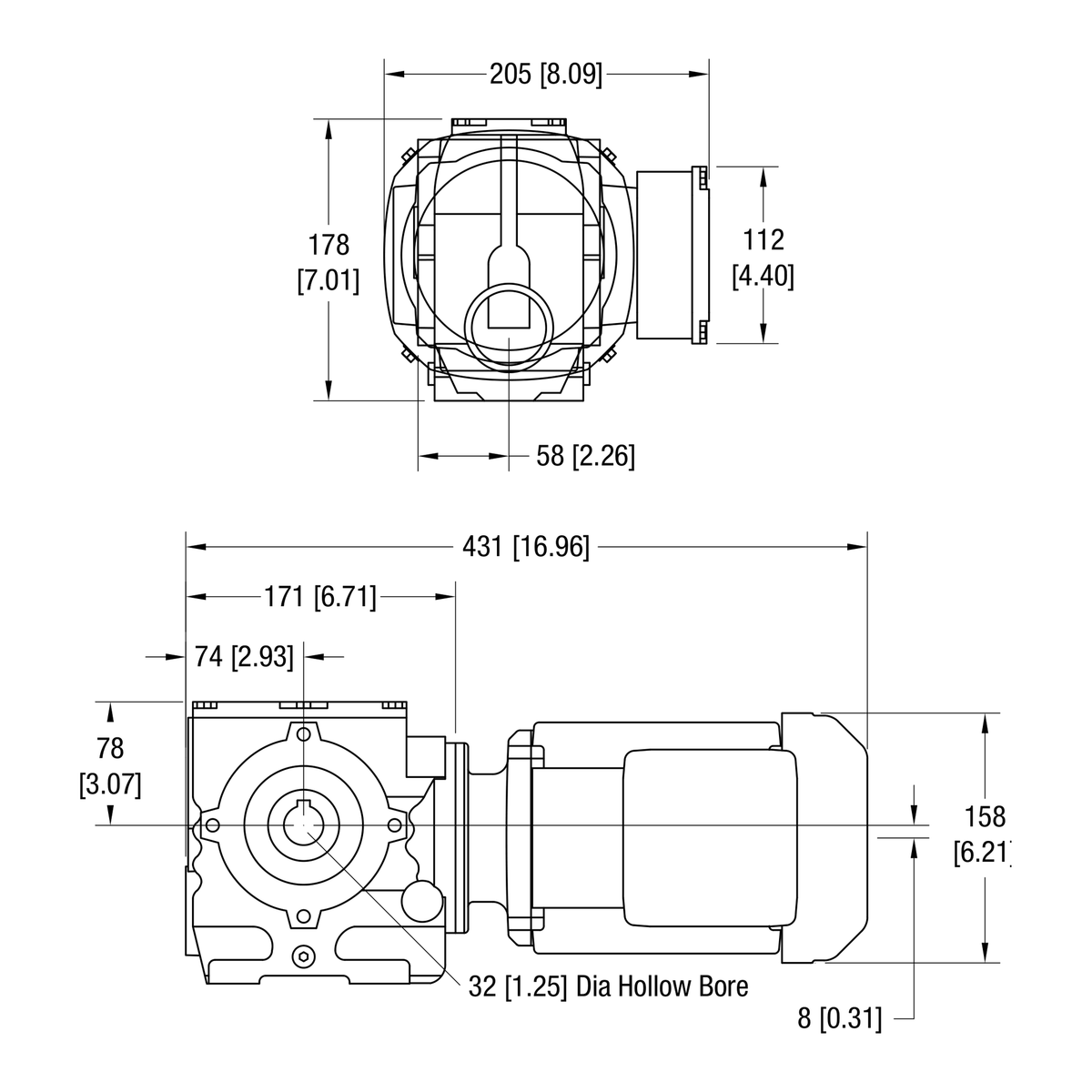

Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M016WH423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 1.5 Hp, 106 RPM

SKU: 32M016WH423EN
Estimated ship time:35 Business Days
Call Us for Volume Discount Availability 704.519.4661
$2,207.00

Heavy load SEW gearmotor 1.5 Hp(1.12 kW), 230/460 volt, 3 phase, 10-60 Hz, 106 RPM. Order 3 phase starter or VFD controller separately. Uncrated weight = 48 lbs. (21.8 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 106
  • Output Torque (in-lb) 787
  • Output Torque (Nm) 88.9
  • Motor Power (Hp) 1.5 Hp
  • Motor Power (kW) 1.12
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible, constant torque 10-60 Hz)
  • Full Load Amps 4.50 / 2.25 A
  • Motor Mount SEW SA47
  • Weight 48 lb
