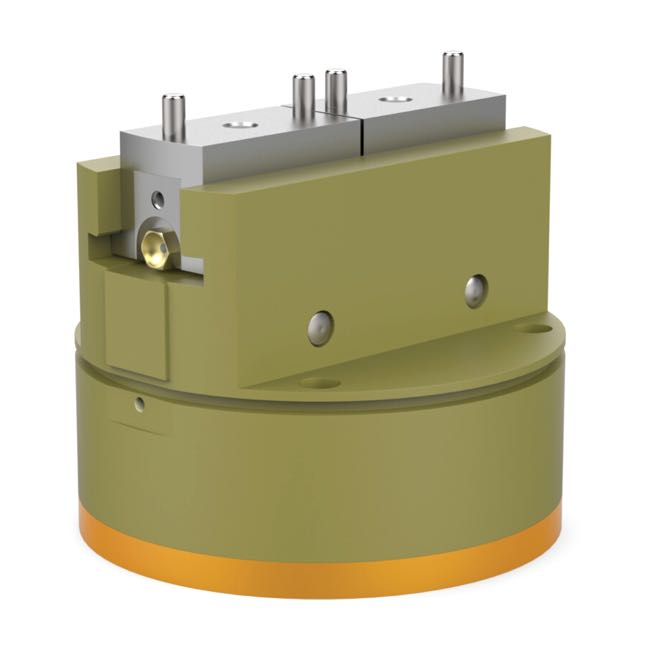

11002P-P-RI-C 2 Jaw Precision Parallel Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,660.00
Couldn't load pickup availability
DESTACO 11002P-P — Technical Specifications
| Specification | Value |
|---|---|
| Model | 11002P-P (Standard Stroke) |
| Grip Force (F6+R) at 6 bar [87 psi] | 3043 N [684 lb] |
| Grip Force (F0+R) at 0 bar | 965 N [217 lb] |
| Total Stroke | 20 mm [0.79 in] |
| Pressure Range (without spring) | 2–7 bar [30–100 psi] |
| Pressure Range (with spring) | 4–7 bar [60–100 psi] |
| Ingress Protection | IP54 |
| Displacement | 87 cm³ [5.31 in³] |
| Temperature Range (Buna-N) | −35° to 80 °C [−30° to 180 °F] |
| Temperature Range (Viton®) | −30° to 150 °C [−20° to 300 °F] |
| Actuation (open/close) | 0.10 s |
| Repeatability | ±0.02 mm [±0.001 in] |
DESTACO 11002P-P-C — Technical Specifications
| Specification | Value |
|---|---|
| Model | 11002P-P-C (Extended Stroke) |
| Grip Force (F6+R) at 6 bar [87 psi] | 2030 N [456 lb] |
| Grip Force (F0+R) at 0 bar | 644 N [145 lb] |
| Total Stroke | 30 mm [1.18 in] |
| Pressure Range (without spring) | 2–7 bar [30–100 psi] |
| Pressure Range (with spring) | 4–7 bar [60–100 psi] |
| Ingress Protection | IP54 |
| Displacement | 87 cm³ [5.31 in³] |
| Temperature Range (Buna-N) | −35° to 80 °C [−30° to 180 °F] |
| Temperature Range (Viton®) | −30° to 150 °C [−20° to 300 °F] |
| Actuation (open/close) | 0.10 s |
| Repeatability | ±0.02 mm [±0.001 in] |
